All stainless steel material high temperature 130 degree 1MHZ Water Meter Flow Sensor
Ultrasonic flow sensor is used as the core element of ultrasonic flow meters. Ultrasonic flow measurement uses the transit time principle, whereby opposite sending and receiving ultrasonic flow sensors are used to transmit signals through the flow. The signal travels faster when moving with the flow stream rather than against the flow stream. The difference between the two transit times is used to calculate the flow rate.

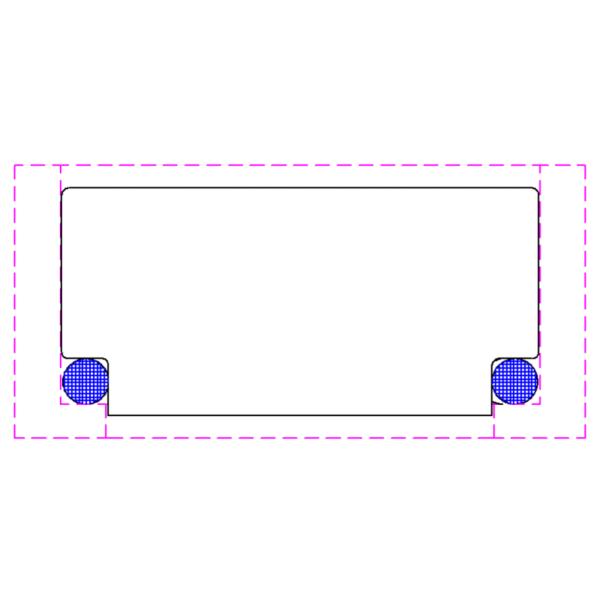

Sealing method: The sealing ring is located at the bottom of the transducer launching surface
| TM-BX17-1MHZ |
| Part NO. | TM-BX17-1MHZ | resonant frequency | 975±30KHZ | static capacitance | 700pf±20% |
| Resonant Impedance | ＜150Ω | Waterproof | IP68 | operating temperature | 5～130℃ |
| withstand voltage | ＜2.6Mpa | Transmitting beam Angle | 5°-10° | receive sensitivity | ≥200mv(half-wave) |
| shell material | All stainless steel | Emission surface diameter | φ17mm | installation dimension | Φ21mm |
| sealing method | Epoxy resin potting | lead wire location | Sensor center | Cable type | coaxial line |
TAIMI Ultrasonic Flow Sensor
With the rapid development of Internet of things technology, the demand for high-performance ultrasonic sensor of ultrasonic intelligent water meter applied in intelligent buildings is becoming more and more obvious. In order to further improve the measurement performance of ultrasonic intelligent water meter, TAIMI has launched a new generation of water meter flow sensor from the perception layer. Compared with similar competitive products on the market, this product has more stable electrical performance and stronger pressure resistance. At the same time, it has the characteristics of high sensitivity, fast reaching the peak value and easier signal processing, which helps to improve the measurement accuracy of ultrasonic water meter, and provides a more competitive hardware basis for the iterative upgrade of ultrasonic intelligent water meter.All copper material, high temperature resistance 130 degrees.
- Conform to international potable water standards
- High and low temperature resistance, high pressure resistance
- High stability and reliability
Ultrasonic flow sensor, the core element of ultrasonic flow meters, is a liquid-medium sensor.It can be used in liqiud flow meter, or as liquid level sensor.
Test Method
1. Test Conditions
The test should be conducted at the temperature of (25±3) ℃ and the relative humidity of 40% ~ 70% R.H. In the environment.
2. Test Method
| 项目 | test method |
| center frequency(Fr) | Measurement of thickness vibration mode by Agilent5100E impedance analyzer |
| Resonant Impedance(R0) |
| electrostatic capacity(CP) | LCR meter,1KHz/1V |
Precautions
.1 The ceramic body of the sensor chip is mainly composed of lead zirconate titanate ceramics. Please ensure that the ceramic body complies with local environmental regulations when discarded.
.2 The performance parameters mentioned in the specification refer to isolated components. Please fully estimate the influence of other factors when used in the whole circuit.
.3 Sensor conductor, red is positive electrode, black is negative electrode. Needle insertion: long for the positive pole, short for the negative pole.
.4 If you have any question about this specification, please contact and negotiate.
